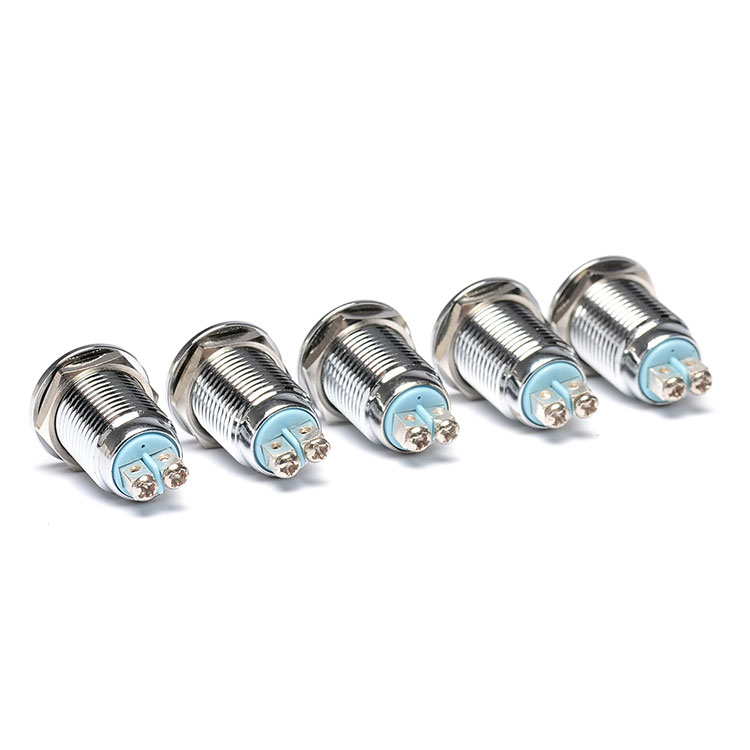

Terminal Type 2 screw terminals
Panel Mounting Hole 12mm
Material Brass Plating/ Stainless steel
Dielectric Strength 1100VAC
Operating Temp. -20℃ – +50℃
Panel Thickness 1~10mm
IP Degree IP65 IK09
Torque 5~14Nm
Rated Voltage 3V 6V 12V 24V 36V 48V 110V 220V
Rated Current About 20mA

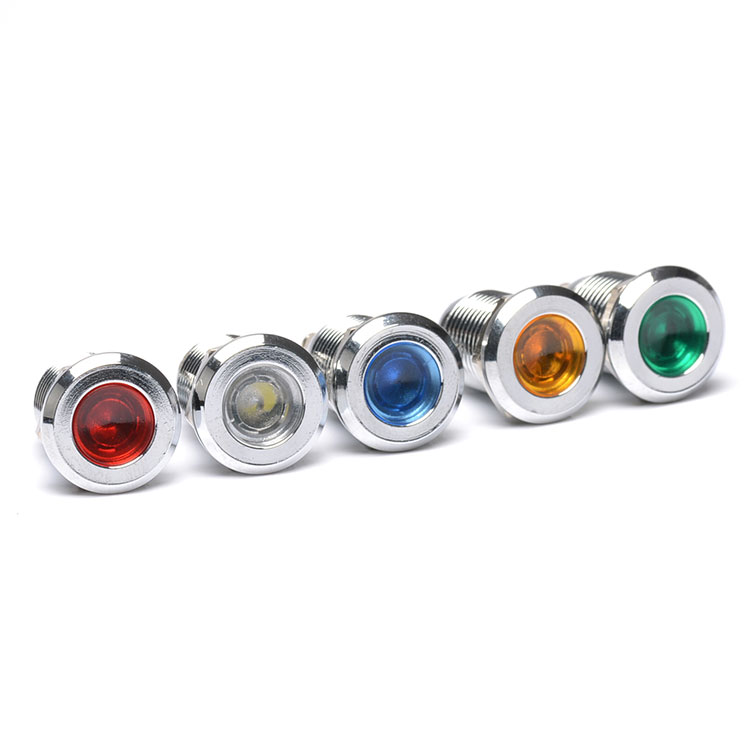

LED Color Red, White, Green, Blue, Orange, Yellow
LED Life 40,000 Hours
RoHS Made To Order
Customized Service Accept

20pieces  into a foam box to protect them. Then packed this foam box into a plastic bag, it will be packed into a small box with 3 layers corrugated. Finally, packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

Yes. Please contact us online or send an e-mail to sophia@jiushi-electronics.com to get it.

Sorry, no. As there are hundreds of styles at our product line, it’s too difficult to make a price list for them. Another important reason is that the raw material and labor costs change too frequently. So if you want to check any price of our products, please feel free to contact us, we will quote immediately.

Our website/ catalog shows most of our products, but not all. So just let us know what product do you need and how many. We will check and reply immediately, we can also produce by your samples or technical drawings. We can build the molds and fixtures, price to be negotiated.

Yes, Please advise your requirement, it will cause some additional cost.

Yes, we can provide 1-3pcs samples of each style for customer test or quality checking. But you have to pay for freight. If you need too many styles or more quantity, we will charge for the samples.

We accept T/T(Wire transfer), Western Union and Paypal, credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money in RMB, no problem.

We have a lot of products in stock and the stocks will be sent out in 3 work days. Otherwise, we will check the delivery time with you.

Yes, We provide a 1-year quality warranty. Our QC inspectors oversee all aspects of production and check each batch prior to shipment to ensure that your orders contain only qualified products.

For small order, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS.

For big order, we will send them by Air or by sea.

We will use good packing and ensure safety. We will take responsibility for any product damage caused on delivery.”
